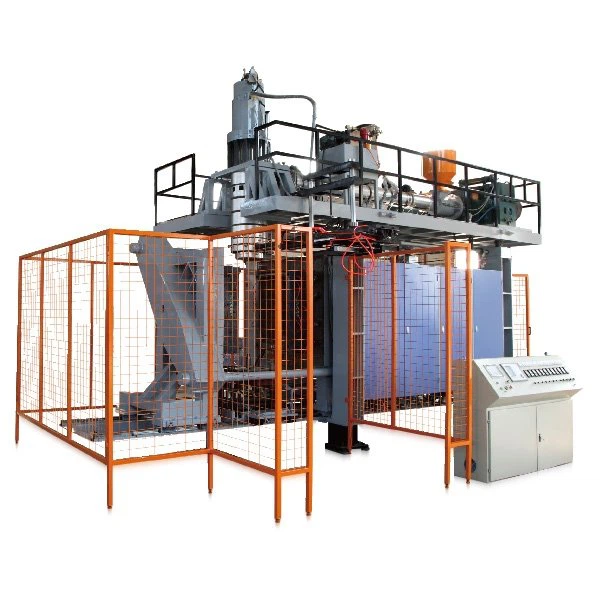

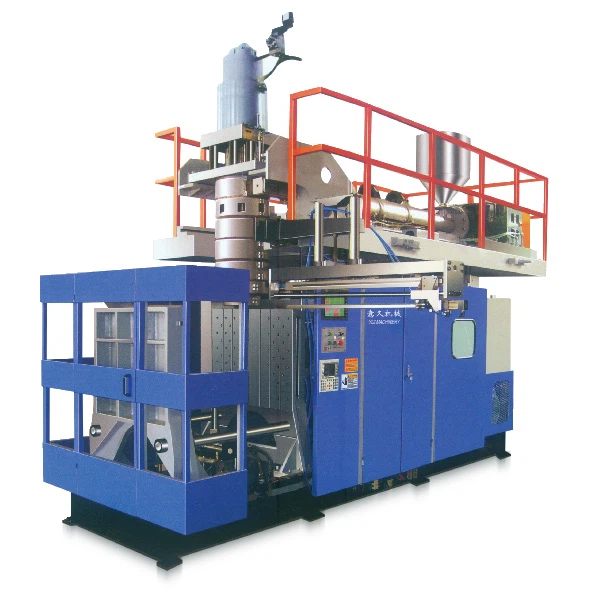

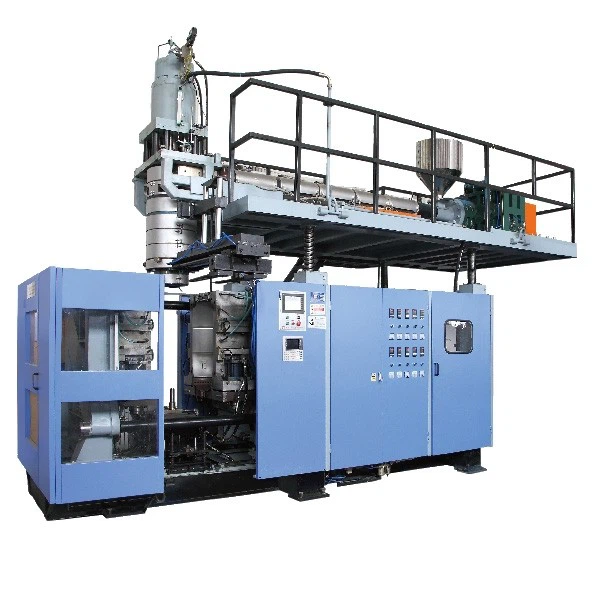

Loj Tshuab Moulding Tshuab
Cia-hom tuag lub taub hau, ntws channel ua los ntawm high-zoo nitrided alloy steel, daim iav saum npoo kho, ceev cov ntaub ntawv thiab xim hloov.
Technical nta
PLC ntxiv rau tib neeg-tshuab interface, kov ua haujlwm. Fault alarm self-diagnosis, clear at a glance.
Cia-hom tuag lub taub hau, ntws channel ua los ntawm high-zoo nitrided alloy steel, daim iav saum npoo kho, ceev cov ntaub ntawv thiab xim hloov.
Cov kab ntawv qhia kab yog siv rau kev qhib thiab kaw cov pwm, cov pwm yog qhov sib npaug sib npaug, thiab cov khoom siv seam kab yog zoo nkauj dua.
Lub tshuab hydraulic txais lub zog txuag hluav taws xob hydraulic qauv tsim, kev siv hluav taws xob txo qis, thiab kev txuag hluav taws xob tuaj yeem yog 20% -40% piv nrog cov qauv qub. Tib lub sijhawm
Tseem ceeb txo cov roj kub thiab ntev kev pab cuam lub neej ntawm hydraulic qhov chaw.
Ntau lub zog muaj nyob rau cov txheej txheem khoom sib txawv: down blowing lifting, encapsulation, support, rotation, sub-pould, manipulator, wall thickness control, etc.
Technical Parameters
|
Technical Parameters |
UNIT |
LKBA100-90L |
|
Cov khoom ntim siab tshaj plaws |
L |
90 |
|
Qhuav lub voj voog |
PCS/H |
360 |
|
Ntsia taub hau |
MM |
100 |
|
Ntsia hlau nam piv |
L/D |
25 |
|
Screw lub cev muaj zog |
KW |
45 |
|
Ntsia hlau cua sov zog |
KW |
24 |
|
Tus naj npawb ntawm cov ntsia hlau cua sov seem |
ZONE |
4 |
|
HDPE khoom extrusion ntim |
KG / H |
180 |
|
Roj twj tso kua mis lub cev muaj zog |
KW |
22 |
|
Clamping quab yuam |
KN |
400 |
|
Qhib thiab kaw stroke |
MM |
550-1250 |
|
Pwm loj |
W x H (MM) |
1000 x 1350 |
|
Cov pwm loj tshaj plaws |
W x H (MM) |
800 x 1000 |
|
Cia muaj peev xwm |
L |
12 |
|
Maximum tuag diam |
MM |
430 |
|
Tuag taub hau cua sov zog |
KW |
20 |
|
Tus naj npawb ntawm cov chaw cua sov |
ZONE |
5 |
|
Tshuab siab |
MPA |
0.8 |
|
Kev siv roj |
M3/MIN |
1.2 |
|
Cov dej txias txias |
MPA |
0.3 |
|
Kev siv dej |
L/MIN |
100 |
|
Tshuab qhov ntev |
L x W x H(M) |
5.5 x 2.8 x 4.5 |
|
Tshuab hnyav |
TON |
14.5 |
Raws li kev nce qib ntawm cov cuab yeej siv thev naus laus zis tas li, cov ntaub ntawv saum toj no yuav raug hloov kho yam tsis tau ceeb toom ua ntej.
Cim npe nrov: Tshuab Moulding tshuab loj, tshuab tshuab
